PRODUCT

Display

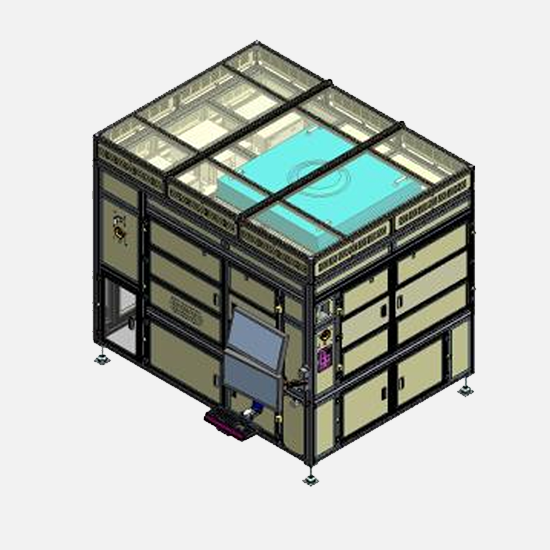

Micro LED Repair Multifunction system
  • 1.png
  • 미디어6.gif
  • 미디어10.gif
  • 미디어9.gif
Items Description
Line Width >1μm
Viscosity <1,000cPs
XY Motion Resolution: 0.1μm. Accuracy: ±1.5μm
Inspection Automatic Inspection
Nozzle Size : 1 ~ 10㎛. Optional : Dual nozzle
Maximum speed 400mm/s
Printable size Customized
Dimension (W x L x H) 1,850 x 2,430 x 2,250(mm)
Flatness detection sensor Basic : Image Autofocus Option: (with single nozzle only) + Laser Autofocus + High resolution confocal Sensor

Description

  • Nozzle cleaner & Evaporator
  • Automatic Inspection
  • Extremely uniform droplet generation

Technology

Laser Curing

Laser Curing

iEHD Printing Technology

iEHD Printing Technology
