PRODUCT
Underfill Dispensing (Jet-valve)
| Items | Description |
|---|---|
| Line Width | >50μm |
| Viscosity | <2,000cPs |
| Supply air pressure | 0.5 Mpa or less |
| Technology | EHD and Jetting Valve |
| Max HZ | 400HZ |
| Response time | 1ms |
| Applicable Fluids | Enzyme, Insulant fluid, EV resin, etc. |
Description

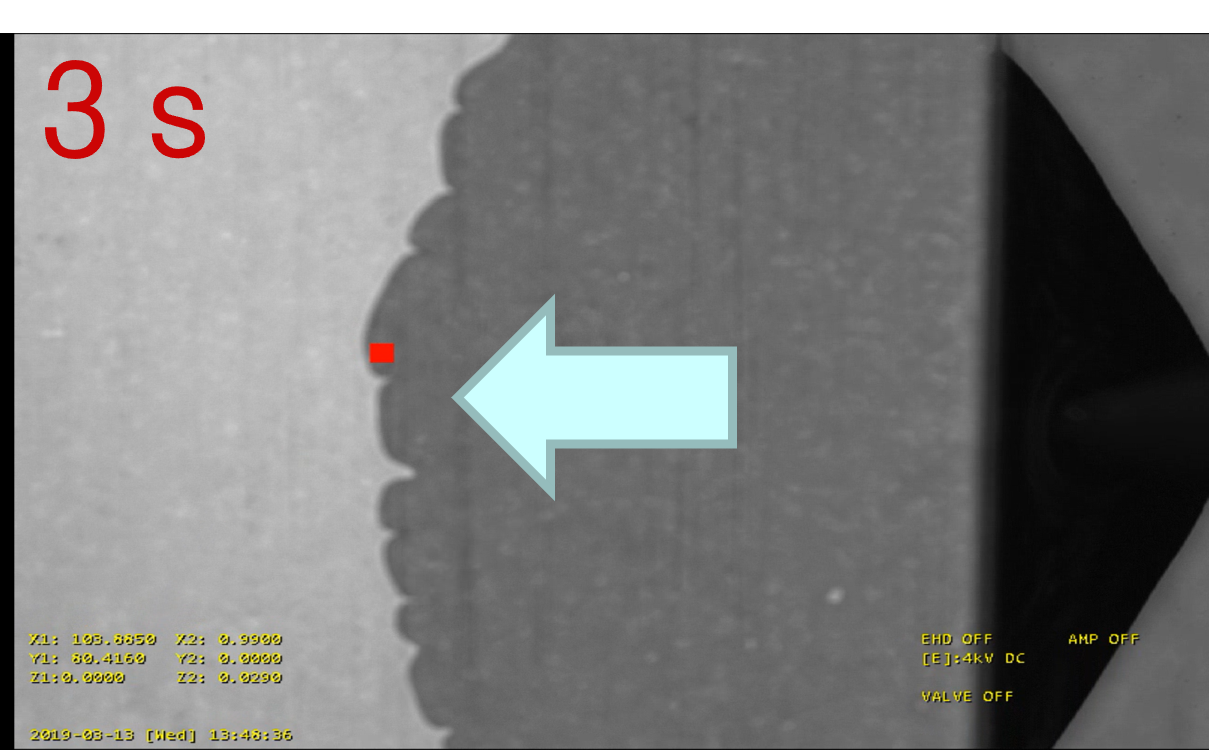

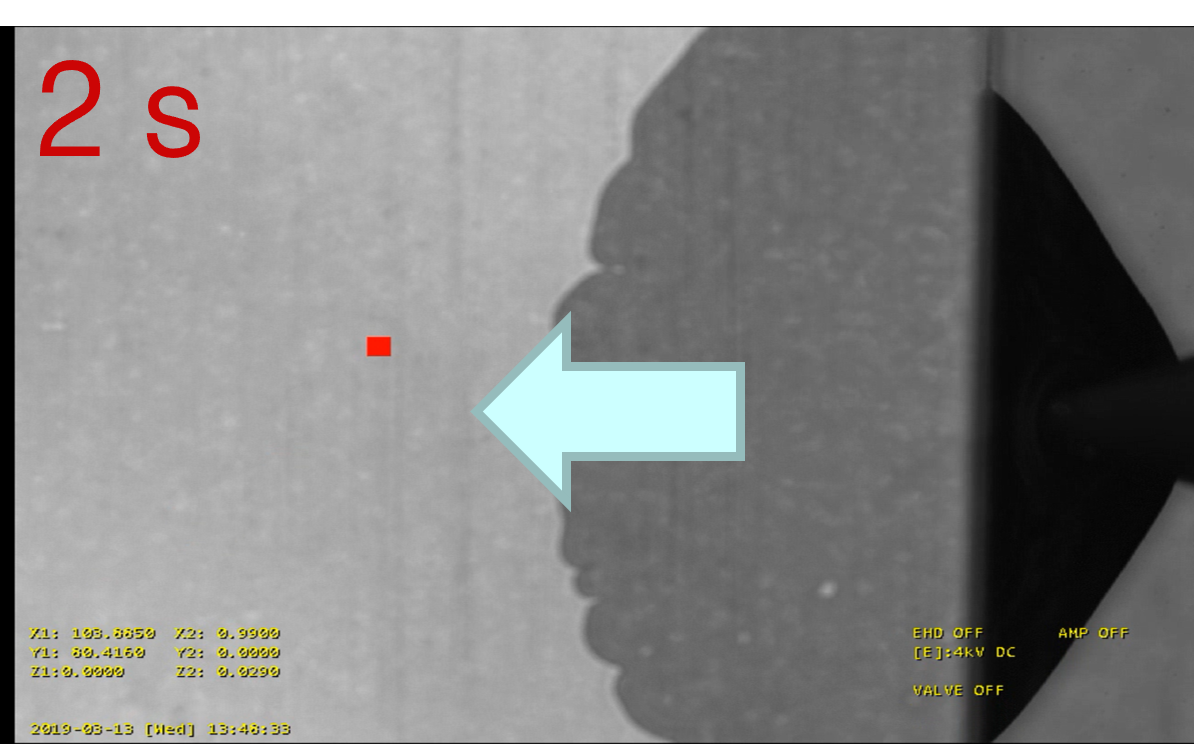

- Fast Underfill
- The Hybrid system: Solenoid & Air + EHD (Electrohydrodynamic)
- Realtime Control & EHD effect

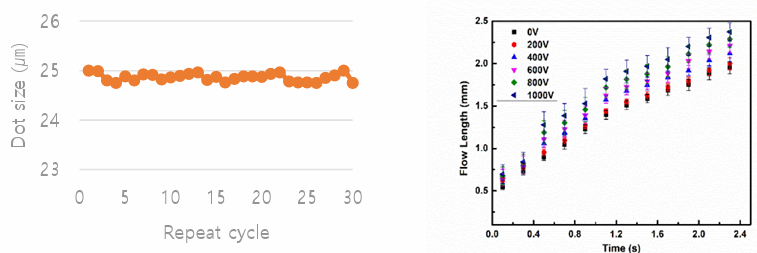

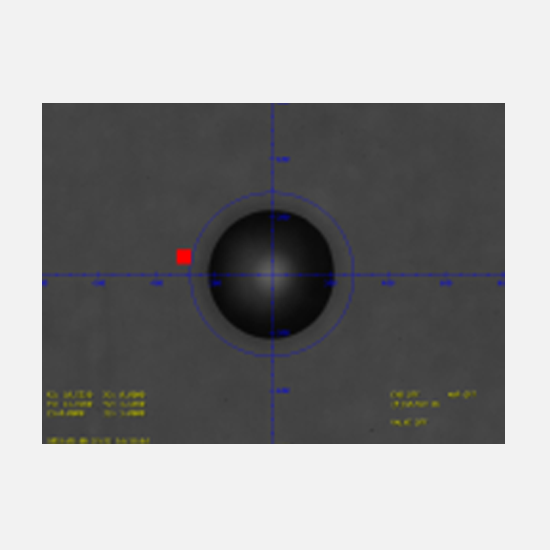

- Extremely uniform droplet generation
Technology
iEHD Printing Technology
